MAXAIR^® CAPR^®

Controlled Air Purifying Respirator

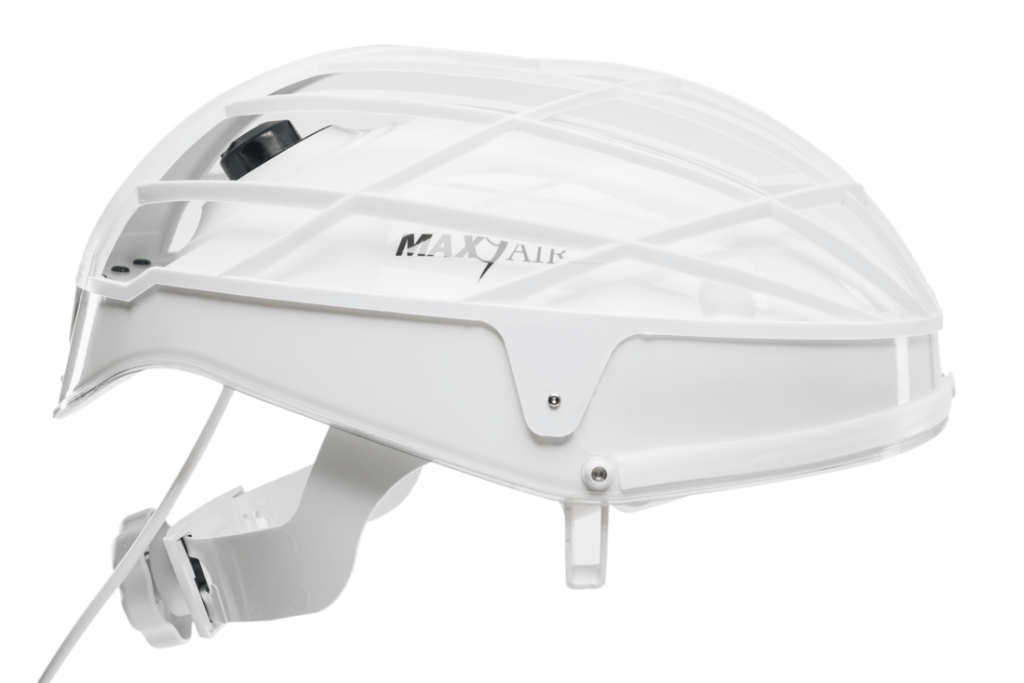

The MAXAIR integrated Helmet places the motor-fan, filter, and electronics in the Helmet. This eliminates the two most disliked components of most conventionally designed PAPRs.

– There is no long, cumbersome air tube (hose)

Eliminates chances of getting caught on nearby objects
Eliminates difficulty sitting in a chair and operating vehicles

– There is no bulky waist/back-mounted blower unit

Eliminates awkwardness working in tight spaces
Eliminates costly time consuming cleaning

MAXAIR's Advanced Design makes you more -

How It Works

Toxic Air 1 (Red Arrows) is pulled by the Motor 2 in under the FCC 3 (or in through the Hood top, not shown)

The Toxic Air is then filtered to Clean Air 4 (Green Arrows) as the Motor pulls it through the Filter 5.

After passing down through the blower the Clean Air moves through the Laminar Flow area 6 , through the front Air Diffusers 7 , and gently down between the Lens and face 8

Simple, Comfortable, Safe

Diffused, clean, cooling air passes down around the wearers’ face
CO₂ is exhausted automatically
The Lens is defogged by the airflow automatically

Additional User Advantages of MAXAIR's Advanced Design

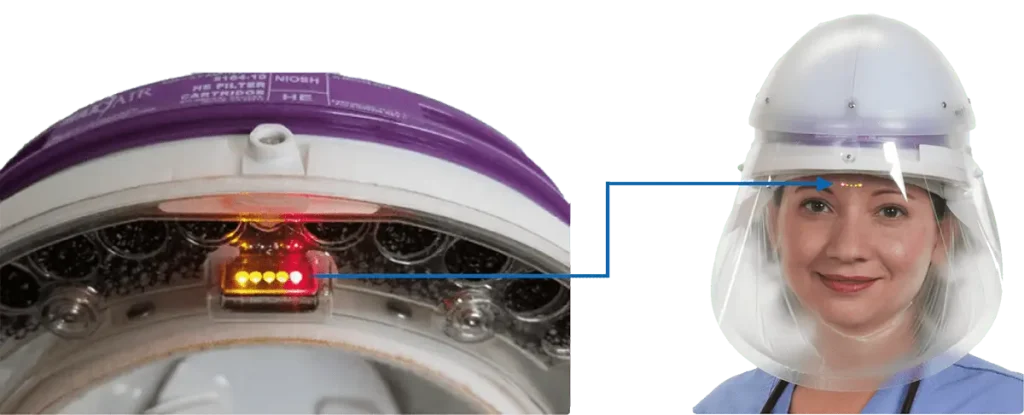

Safe – Always on and Visible HUD LEDs

Front mounted LED’s display critical information from system/airflow micro-computer controller.
LED’s provide real time Heads Up Display to wearer in upper peripheral vision.
Constant during use awareness of safe air flow and battery run time conditions.
No confusing audio alarms.
No need to stop and make manual checks, look away from activity, or ask a helper to read a “fuel gauge”.

All five LEDs are shown on as is the case each time the Helmet is powered on.

NOTE: LEDs are illustrated; Actual display is only visible to wearer.

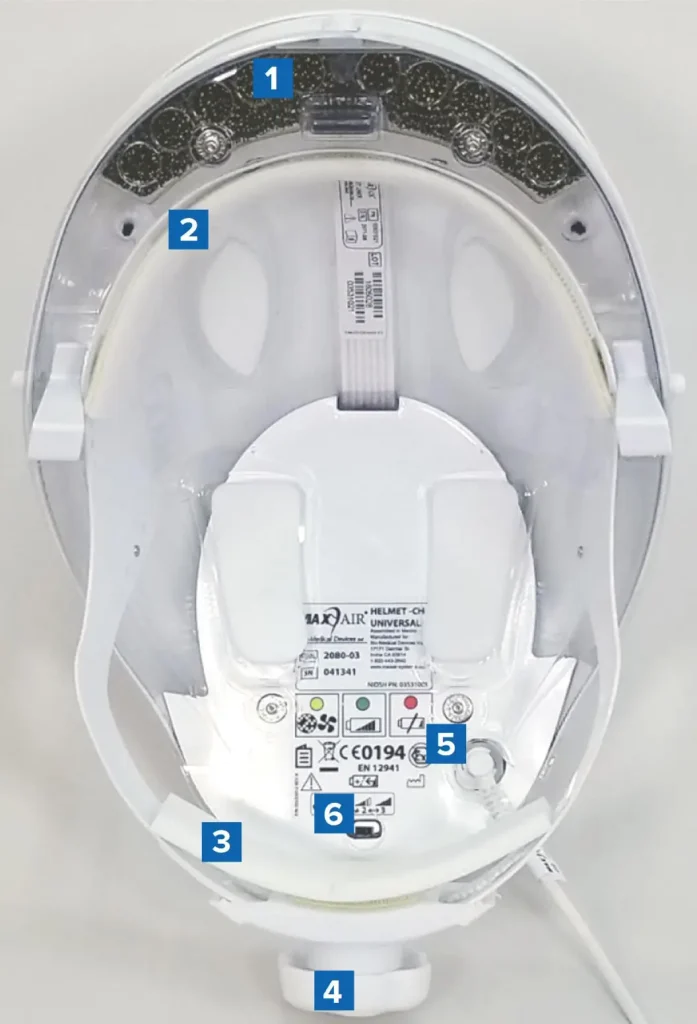

More Comfortable

1. Air Diffusers Assist in Low Noise Operation, ≤ 62dB. Evenly dispersed air for Comfort and Anti-Lens-Fogging

2. Front Comfort Strip (Disposable)

3. Rear Comfort Pad (Cleanable)

4. Easy grasp-and-turn Ratchet to adjust head circumference and secure helmet-to-head

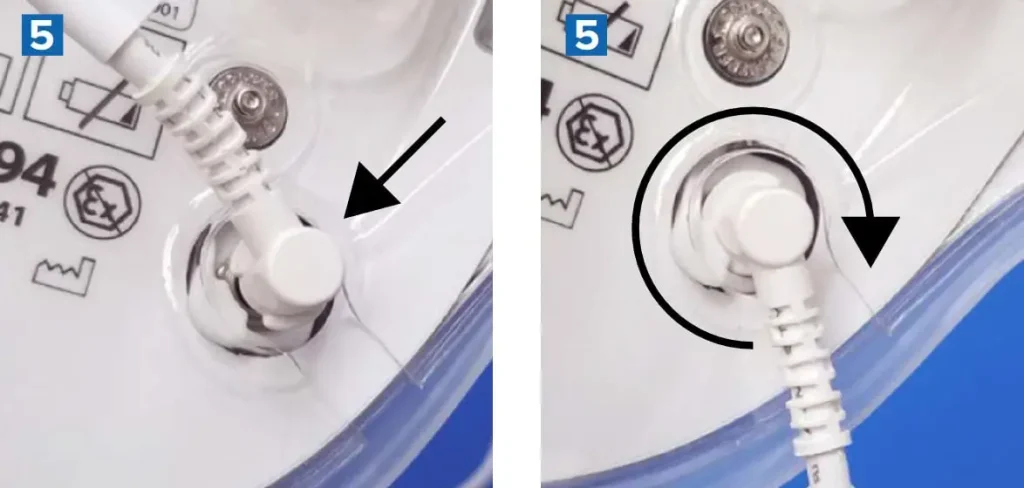

Safe Turnlock Power Cord Connector

5. Provides safe connection and easy connect/disconnect

Allows Helmet to be removed if in standby

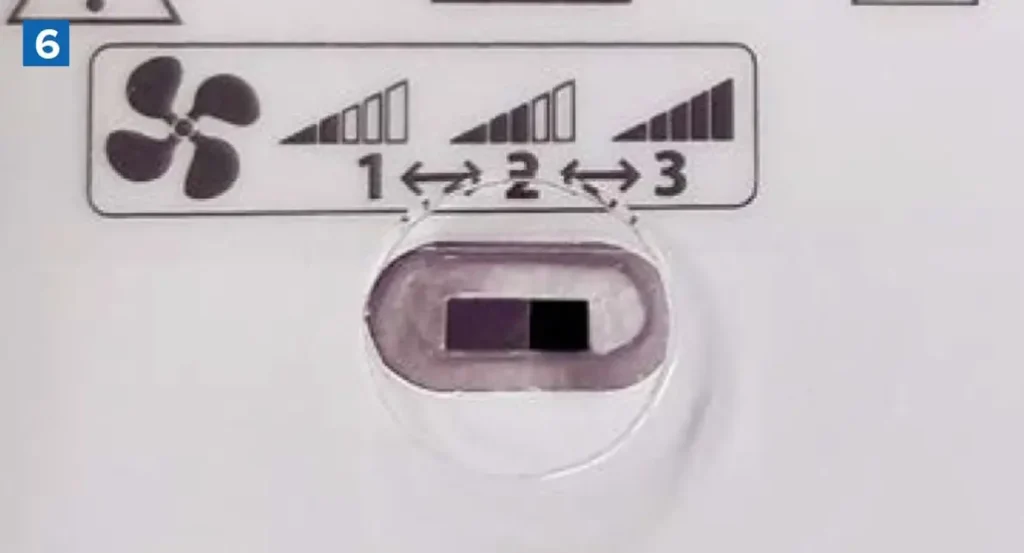

User Selectable Comfort Level

6. Set Air-Flow Range to meet activity, comfort level

Computer controlled constant flow througout battery run-time

MAXAIR Systems

Meet Today’s Needs And Tomorrows Expectations:

MAXAIR CAPR® Systems are advanced respiratory protection systems that meet all OSHA loose fitting (no Fit Testing required) PAPR requirements.
Click on Market images below for more information.
